OS-45 'Appalachians': 15-Chorders for Folk and Bluegrass (Sort Of)

Although string-band players like Cecil Null and Maybelle Carter reenergized autoharp sales in the 1930s and 1940s, Oscar Schmidt seldom paid attention to the needs of autoharp players in genres like Folk, Bluegrass, and Country. Most specifically, they tended to ignore keys that guitar-, banjo-, and mandolin-based performers preferred. Even keys they covered (like G, the Bluegrass banjo-picker's favorite key) were undersupported (no Em).

Trying to Meet "String-Band" Needs

1963 saw the peak of the Folk Revival, the rise of Bluegrass, and the mainstreaming of Country music. New OS directory Glen Peterson recognized that those "guitar-friendly" music genres had left the autoharp in the dust.

He consulted well-known "string-band" and folk musicians like "Mother" Maybelle Carter, Cecil Null, and Mike Seeger for their recommendations. Seeger apparently recommended that their autoharps add the ability to play in the keys of D and A. The "Appalachian" series was born. Since 21-chord autoharps hadn't been invented yet, it started out on the 15-chord platform.

The original Appalachian model 45 (right) gave you E and A chords, as well as D (which not all 15-chorders had at the time). Compared to the most common 15-chord setup, these models are "missing" Eb and F7, two chords you almost never need in Folk, Bluegrass, or Country.

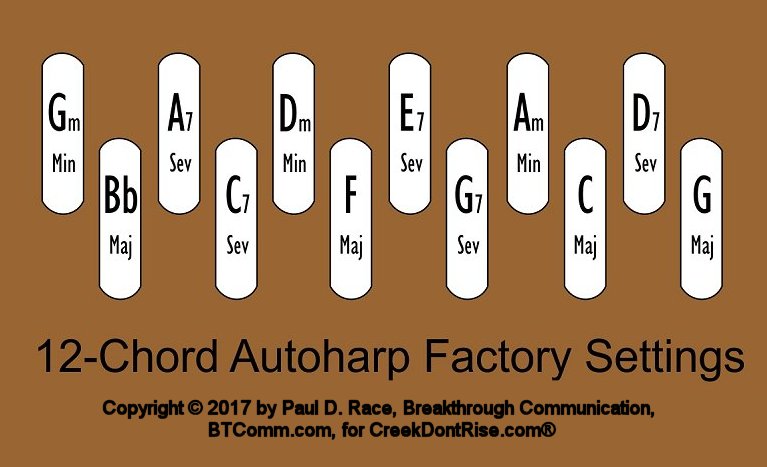

Any arrangement of the chord bars on these 'harps was technically possible. However, the designers made it somewhat difficult to play in A and D, because they felt compelled to keep the 12 chord bars toward the right or lower end of the 'harp exactly as they had been designed in 1886.

They just squoze E, A, and D in on the other end.

Nevertheless, this was a step in the right direction.

Other improvements included better felts and somewhat superior bracing (though the bracing still connected the face to the back).

To see the text of an advertisement Oscar Schmidt made about the original OS45's design, click here.

In 1967, as Oscar Schmidt redesigned their entire line, they introduced a "Type B" Appalachian (OS45B and OS45BH). Soon after, Chromaharp introduced their "Bluegrass" model. All used exactly the same chord arrangement as the original OS45.

Appalachian Models OS45B and OS45BH	Chromaharp "Bluegrass"

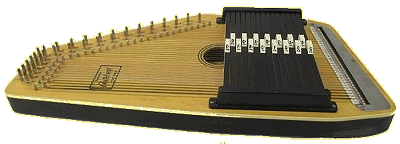

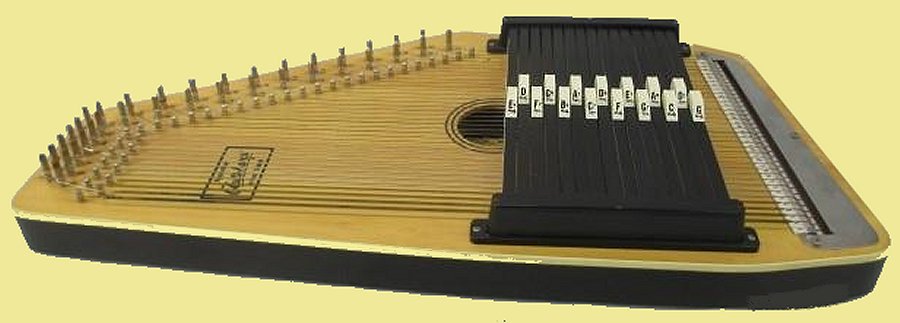

The OS45B and OS45BH models (left above) are nearly identical to many of Oscar Schmidt's other "B model" 15-chorders.

You can tell the difference from the "run-of-the-mill" 15-chord OS 'harps of that era by the rectangular logo box with the word "Appalachian" written over the "Autoharp" logo.

As far as I know, you can only tell the difference between an OS45B and an OS45BH by the label. The OS45B had a solid top, so it's preferable, as long as the top hasn't started to crack or cave in around the hole. (At this moment, I have one of these, but I have no idea which one, since the label is missing. It has been properly stored, so it is still quite playable. That said, the top shows no sign of caving or cracking, so it's probably the BH model.)

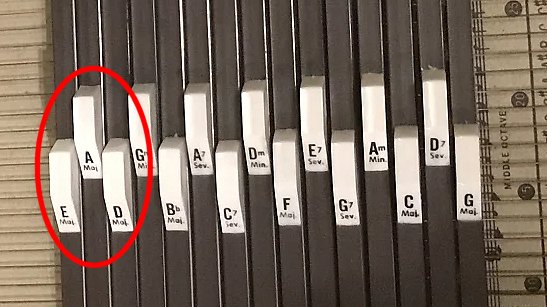

"Appalachian" Silvertones - In the mid 1960s Oscar Schmidt made a bunch of "Type A" Autoharps for Sears to sell under their "Silvertone" brand . They're most notable for pale finishes and lack of a hole. Surprisingly, a number of the 15-chord versions used the "Appalachian" chord setup.

If you see one, look for E, A, and D chord bars on the left end. Most Silvertones have Eb, D, and F7 there, which means they're nothing special. But the build and sound quality of these is nothing to sneeze at. If you come across one and you want to experiment with the Appalachian chord setup, you might enjoy restoring and playing it.

Non-Appalachian "Appalachians"

OS has also made a 15-chord "Appalachian" with a flower-shaped tone hole (similar to the one at the left below). It's a charming instrument, but it has the standard 15-chord setup, not the original Appalachian setup that makes the earlier models more useful for Folk, Bluegrass, and Country musicians.

21-Chord Versions

The OS45BH was discontinued in 1975, when the 21-chord Appalachians were introduced (OS45C). All 21-chord "Appalachians" follow the standard 21-chord setup, though the initial OS45Cs were sold with an extra chord bar for E major. Later models have left the E chord bar out.

Some OS45Cs were cool looking, with a flower-shaped tone hole (above left). Others have had round tone holes. Finish on those with round tone holes has varied, including a natural finish and the sunburst finish shown above right.

In the early 2000s, Oscar Schmidt advertised their OS45Cs as "ideal for Bluegrass," but, without the E chord (and some others), they were no more suited for Bluegrass than any other 21-chorder.

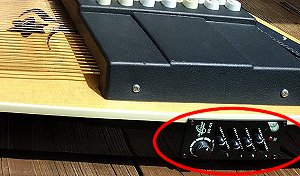

One very short-lived version was an OS45CE with a flower tonehole and an equalizer/preamp built into the side. Unfortunately, cutting into the frame to fit the electronics caused most of these to warp, delaminate, and even buckle. I've never seen an intact one, but I have owned the warped one, more's the pity. More recently, some OS45CEs were built with the pickups but without the electronics, so they're as sturdy as any OS autoharps produced that year.

The short version is that the 21-chord Appalachians don't have any features that make them more Folk- or Bluegrass-friendly than any of their other 21-chorders. Some of them look cool, I'll give them that. And 21-chorders in general are easier to reconfigure than 15-chorders.

But, among the "Appalachians," the early 15-chorders are the ones I admire for at least trying to meet the needs of acoustic-based musicians. And when you come across them, they're not generally that expensive.

Tweaking

Playing in D on a Chromaharp "Bluegrass" or a 15-chord OS Appalachian is not easy, since the G is on the other end of the chord bar row. It wasn't hard to remove the plastic covers that hold the chord bars in place and move the chord bars around (be very careful not to lose springs). Now I can play the thing easily in D or A, and it's still easy to play in G.

Other tweaks that involve moving felt bits around would make the thing even more useful, but you'll have to go to our article on the subject for more details.

Value?

That said, the original OS45s, the Appalachian-chorded Silvertones, and the first-generation OS45Bs are all very solid. Frankly, they are all more solid than the Oscar Schmidt autoharps being made today. So is the Chromaharp "Bluegrass."

That said, the usefulness of these is worth noting. Because you can play in C, G, D, and A, you can play along with a lot of old fiddle tunes and many Folk, Bluegrass, and Country songs. So if you're looking at getting a used 15-chorder for a person who likes that kind of music, these will be more useful than a standard 15-chorder.

On the other hand, if you're playing with a guitarist who wants to do more complex songs (say by Paul Simon, James Taylor, Noel Stookey, etc.) , you may find yourself missing chords you need, like Em, Bm, and F#m to name a couple. Don't feel bad, 21-chorders don't have Bm or F#m either unless you tweak them.

Further Reconfigurations

I have now owned several of these, and I've experimented with reconfiguring my Chromaharp Bluegrass to make it even more useful. For example, I changed the E7 to Eminor so I could play songs like "Country Roads" properly. That's a fairly simple job.

For a description of that project, click here.

Further reconfigurations are possible, of course. I love the "home-made" look of the original OS45s, and the ones that have been stored properly still sound great, so they are great candidates for tweaking.

Conclusion

At any rate, these have a lot of potential. And considering that the original ones are seventy years old as of this writing, most of the ones I've encountered still offer the possibility of another seventy years' usefulness.

Best of luck, whatever kind of instrument you play, and whatever kind of music you like.

If you have any questions, concerns, or corrections, please get in touch!
